Machines Available for Job-work and for our in-house Products
We have multiple machines available with a wide variety and sizes available in our plant. Check them out below.

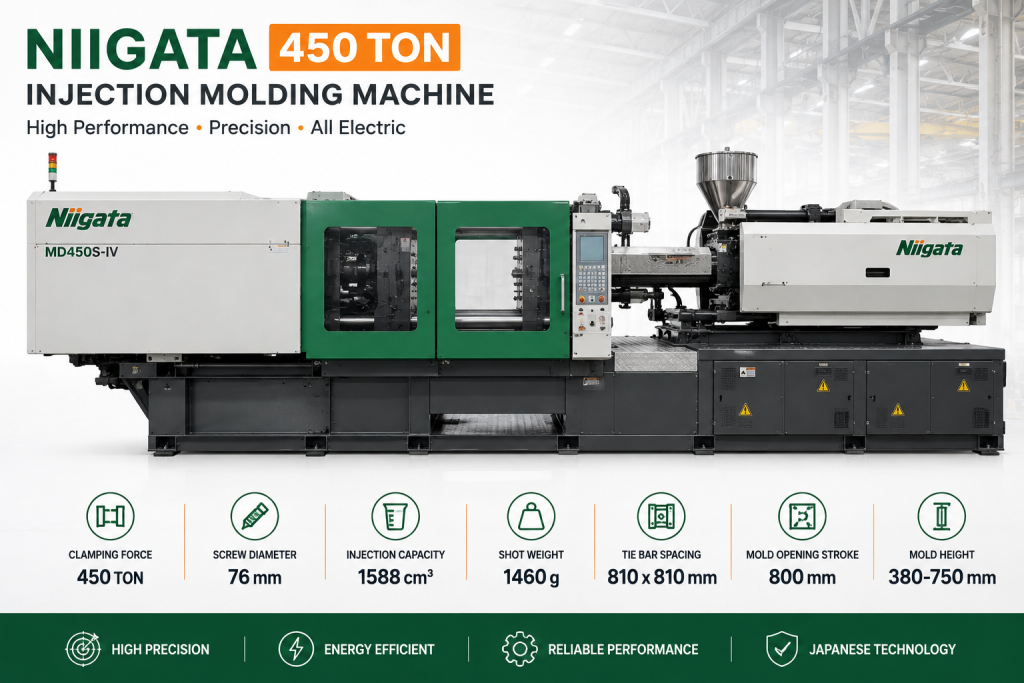

Niigata 450-Ton Injection Molding Machine
The Niigata 450-ton injection molding machine is a heavy-duty industrial machine designed for producing medium-to-large plastic components with high precision and repeatability. Niigata is a Japanese manufacturer known for injection molding technology, and several 450-ton machines are found in its all-electric MD series.
Key Specifications of the Niigata MD450S-IV
| Specification | Typical MD450S-IV example |
|---|---|
| Clamping Force | 450 tons |
| Drive | All-electric |
| Screw Diameter | 76 mm (other configurations exist) |
| Theoretical Injection Capacity | 1,588 cm³ |
| Shot Weight | Approx. 1,460 g |
| Tie-Bar Spacing | 810 × 810 mm |
| Platen Size | 1,160 × 1,160 mm |
| Mold Opening Stroke | 800 mm |
| Mold Height | 380–750 mm |
| Approx. Machine Size | 8.2 × 2.0 × 2.3 m |
| Approx. Machine Weight | 25.6 tons |
Materials That Can Be Processed
Depending on screw configuration, mold design and processing requirements, a machine in this class can be used with many common thermoplastics, including:
- PP – Polypropylene
- ABS – Acrylonitrile Butadiene Styrene
- HIPS – High Impact Polystyrene
- HDPE – High-Density Polyethylene
- LDPE – Low-Density Polyethylene
- PS – Polystyrene
- Various engineering thermoplastics where the machine and tooling are appropriately configured

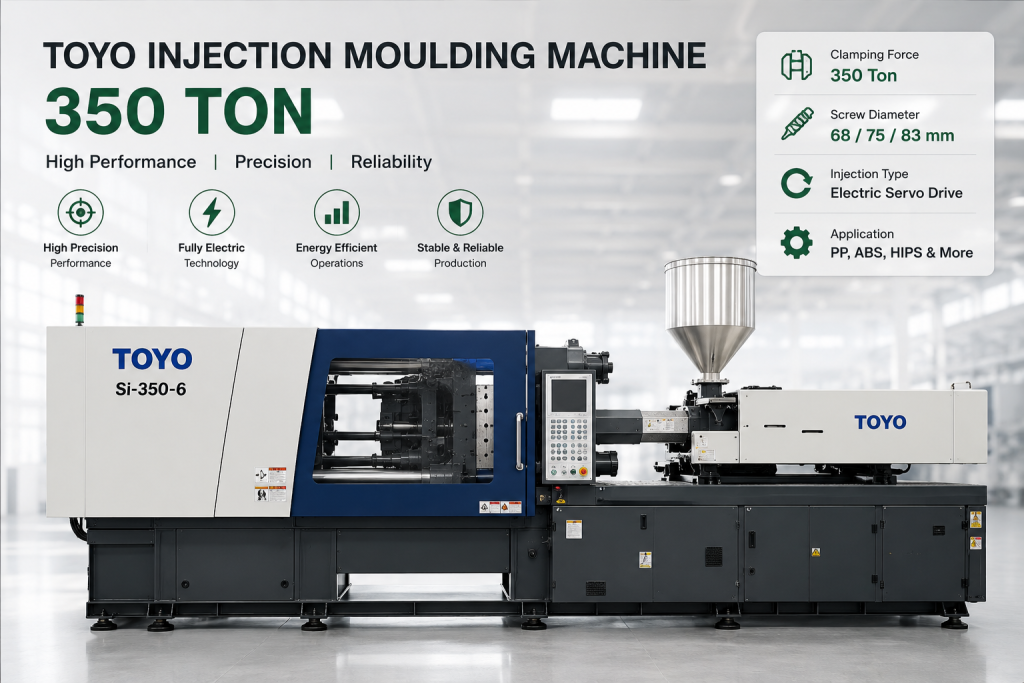

Toyo Injection Molding Machine 350 Ton
The Toyo 350 Ton Injection Molding Machine, commonly represented by models such as the Si-350 series, is a high-performance industrial machine designed for producing medium-to-large plastic components with high accuracy and repeatability. Toyo’s modern Si-series machines use fully electric servo technology, making them particularly suitable for manufacturers seeking precise process control, consistent product quality, and efficient production.
Key Features of the Toyo 350 Ton Machine
1. Fully Electric Operation
Modern Toyo Si-series injection moulding machines are electrically driven. Servo-controlled operation allows important movements such as injection and clamping to be controlled accurately. This can provide better repeatability while also avoiding many characteristics associated with conventional hydraulic drive systems.
2. High Injection Precision
The machine provides precise control over parameters such as:
- Injection speed
- Injection pressure
- Screw movement
- Holding pressure
- Mould movement
This is particularly valuable when producing components where dimensional consistency and surface quality are important.
3. Different Injection Configurations
One interesting feature of Toyo’s Si-350-6 platform is the availability of standard, high-pressure and high-speed injection configurations, allowing the machine configuration to be selected according to the moulded product.
For example, Toyo’s documentation lists screw diameters including 68 mm, 75 mm and 83 mm for configurations associated with the Si-350-6, although the exact specification depends on the selected injection unit.
Materials That Can Be Processed
A 350-ton injection moulding machine can potentially process many thermoplastic materials, depending on the screw, mould, processing conditions and exact machine configuration. Common examples include:
PP (Polypropylene) – widely used for household, packaging and industrial products.
ABS (Acrylonitrile Butadiene Styrene) – commonly selected for durable components, appliance parts, housings and consumer products.
HIPS (High Impact Polystyrene) – used for products requiring good processability and impact resistance.
Other compatible thermoplastics may also be processed when the machine and mould are appropriately configured.

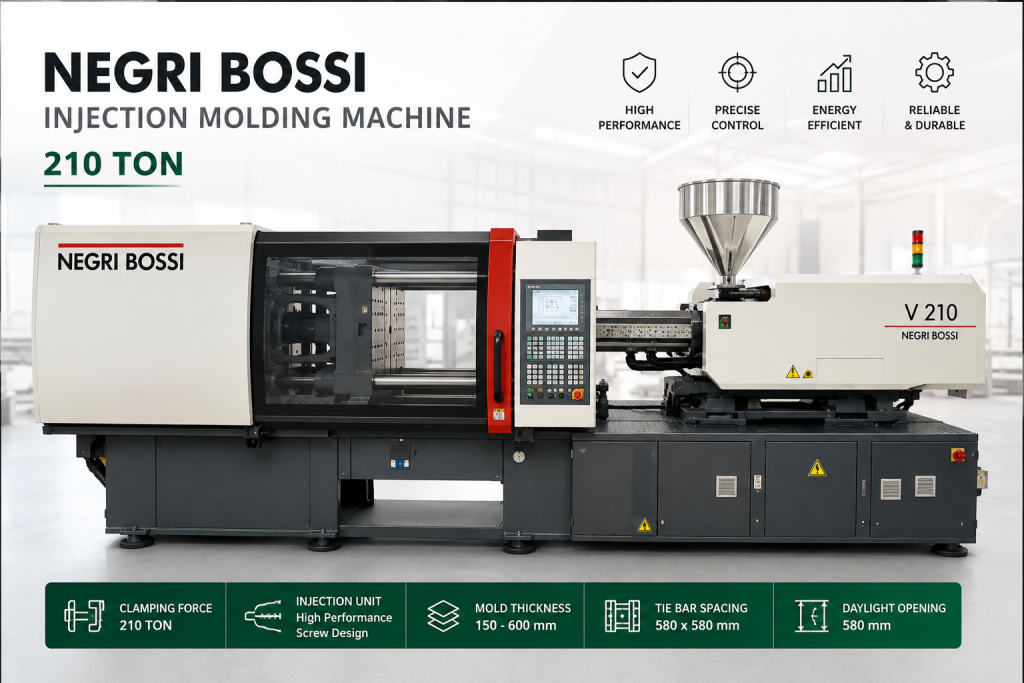

NEGRI BOSSI 210 Ton Injection Molding Machine
The NEGRI BOSSI 210 Ton Injection Molding Machine is an industrial plastic injection molding machine designed for the efficient production of plastic components. With approximately 210 tons of clamping force, this class of machine is suitable for a wide variety of medium-sized molded products where consistent pressure, repeatability, and production efficiency are important.
Materials That Can Be Processed
Depending on the screw/barrel configuration, mold, temperature requirements, and machine specifications, injection molding machines in this category can process many thermoplastics, including:
- PP – Polypropylene
- ABS – Acrylonitrile Butadiene Styrene
- HIPS – High Impact Polystyrene
- HDPE / LDPE – Polyethylene
- PS – Polystyrene
- Other compatible engineering and commodity thermoplastics
This makes a 210-ton machine useful for manufacturers working with a diverse range of plastic products.
Advantages of a 210 Ton Injection Molding Machine
For suitable applications, this machine class provides a useful balance between production capacity and versatility. Accurate process control can help manufacturers achieve consistent dimensions, repeatable quality and efficient cycle times, while interchangeable molds allow the same machine to manufacture many different products.
Automation can also reduce manual handling and make the process suitable for continuous or high-volume production.

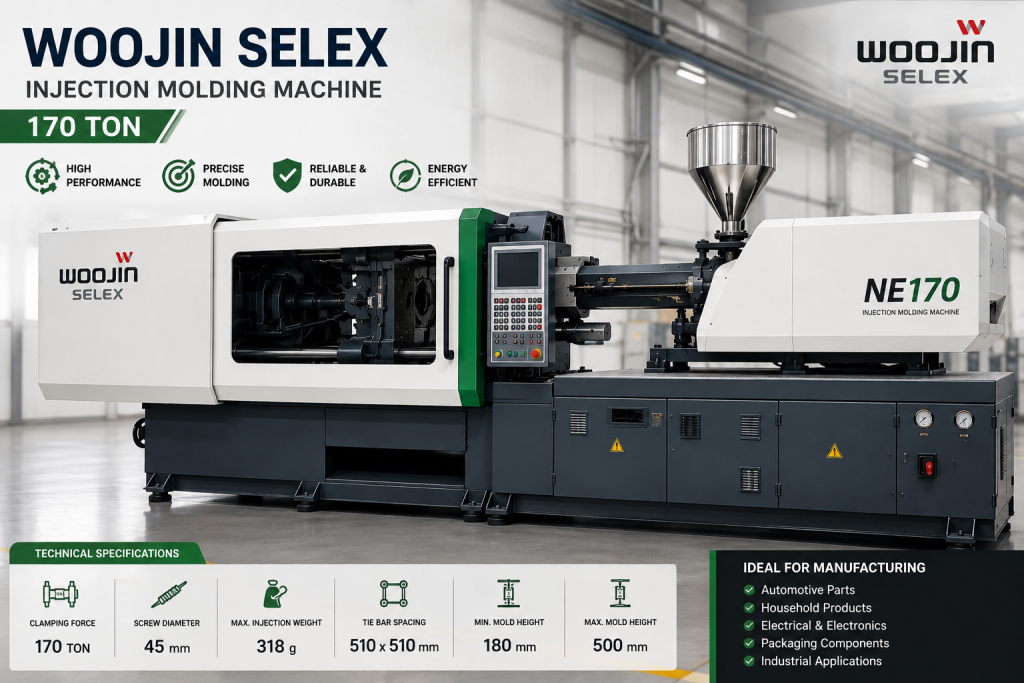

Woojin Selex Injection Molding Machine 170 Ton
The Woojin Selex 170 Ton Injection Molding Machine is an industrial plastic injection molding machine designed for producing plastic components with consistent dimensions, repeatability, and production efficiency. Its 170-ton clamping force enables the mold to remain securely closed while molten plastic is injected under pressure, making the machine suitable for a broad range of medium-sized molded components.
Key Specifications
A documented Woojin Selex 170-ton machine is listed with the following specifications:
| Specification | Value |
|---|---|
| Clamping Force | 170 tons |
| Screw Diameter | 45 mm |
| Maximum Molding Weight | 318 g |
| Tie-Bar Spacing | 510 × 510 mm |
| Minimum Mold Height | 180 mm |
| Maximum Mold Height | 500 mm |
| Machine Weight | Approx. 7,000 kg |
| Machine Dimensions | Approx. 5.4 × 1.4 × 1.7 m |
| Hydraulic Oil Capacity | Approx. 320 L |
Materials That Can Be Processed
Depending on the screw/barrel configuration, mold, temperature requirements, and machine specifications, injection molding machines in this category can process many thermoplastics, Materials commonly processed by injection molding machines in this category include PP (Polypropylene), ABS (Acrylonitrile Butadiene Styrene), HIPS (High Impact Polystyrene), PE (Polyethylene) and various engineering thermoplastics, subject to the screw/barrel configuration and processing requirements.

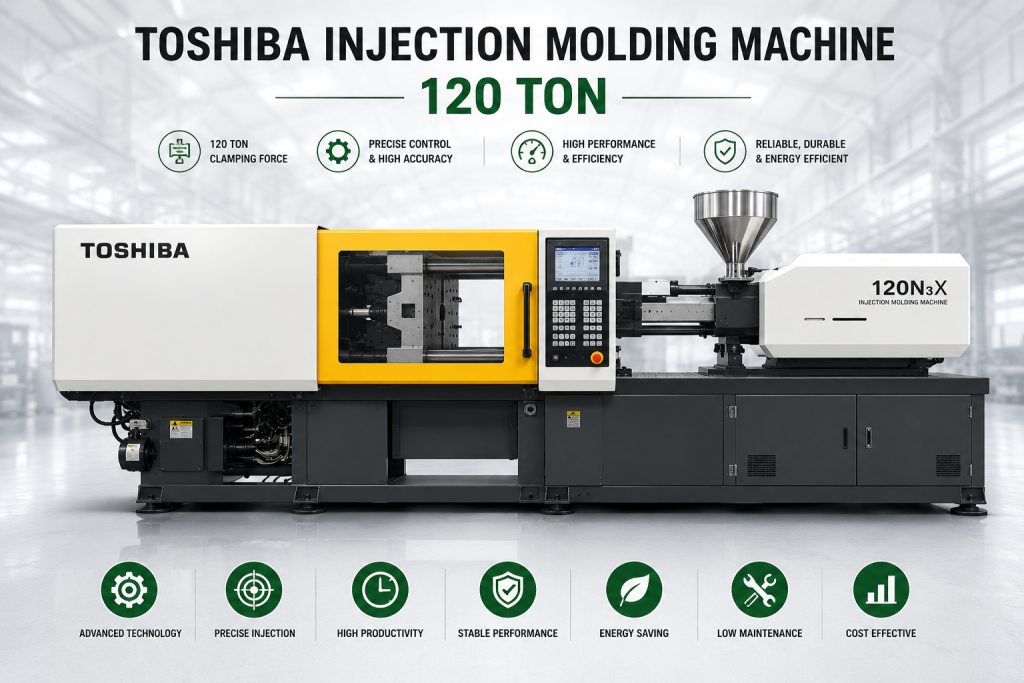

Toshiba Injection Molding Machine 120 Ton
A Toshiba 120 Ton Injection Molding Machine is an industrial plastic processing machine designed for producing molded plastic components with consistent dimensions, repeatability, and production efficiency. The 120-ton rating generally refers to the machine’s clamping force, which keeps the mold securely closed while molten plastic is injected under pressure.
Materials That Can Be Processed
Depending on the exact Toshiba model, screw configuration, processing conditions, and mold, injection molding machines in this category may be used with thermoplastics such as:
- PP (Polypropylene)
- ABS (Acrylonitrile Butadiene Styrene)
- HIPS (High Impact Polystyrene)
- PE (Polyethylene)
- PS (Polystyrene)
- Other compatible engineering thermoplastics
For a company working with HIPS, ABS and PP, this type of injection molding equipment can therefore be highly relevant.
Advantages
One of the major benefits of injection molding is its ability to manufacture highly repeatable components in large quantities. Once the machine, material, and mold parameters are properly established, production can be highly automated.
A suitable Toshiba injection molding machine can provide benefits such as repeatable molding cycles, controlled injection parameters, efficient mass production, consistent part quality, reduced manual intervention, and the ability to manufacture complex plastic shapes.
Modern controls can also allow operators to manage important parameters such as injection speed, pressure, temperature, holding conditions, cooling time, and mold movement.
Built for Quality, Ready for Your Requirements
At Satnam Plastic, our range of injection moulding machines enables us to handle diverse plastic manufacturing requirements with precision, consistency, and efficiency. With reliable machinery, experienced operations, and a strong focus on quality, we are equipped to undertake custom injection moulding job work for a variety of plastic components. Whether you require small production runs or continuous manufacturing, we aim to deliver dependable results while maintaining consistent product quality and timely service. Contact Satnam Plastic today to discuss your moulding requirements and find the right manufacturing solution for your business.
